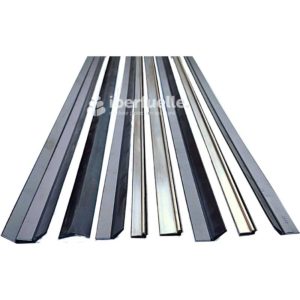

Way Wipers are indicated to drag large amounts of shavings, oils and / or coolants in metal cutting machines.
They are profiled and welded with standard dimensions or customized according to drawing.
In standard they are supplied in 1000mm or 2000mm sticks.
The way wipers are manufactured with a stainless steel profile, with or without oil outlet to the guide and with a high-quality polyurethane lip that gives it an excellent drag capacity: of chips or coolants.
Almost any design can be outlined according to plan or sketch.
With mounting holes included on request.
Stainless steel and polyurethane lip way wipers (ACB-LG)
They are profileable, with a cleaning lip and rear airtight seal to prevent coolant flow.
High mechanical load capacity.
Polyurethane lip properties
- Excellent mechanical properties and resistance to abrasion and wear.
- High resistance to oils, refrigerants, acids and alkaline solutions.
- Maximum temperature 90°C in continuous or peaks of 130°C
Stainless steel and polyurethane lip way wipers (ACF-LG)
With the same characteristics as the ACB-LG, but with a pre-scraper or stainless steel stick.
It is advisable to use this type of scraper when there is a large amount of chips.

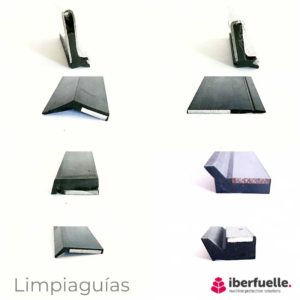

Vulcanized way wipers
Composed of a lip in NBR or Viton (FPM), with a steel or aluminum sheet insert.
Excellent resistance to abrasion, chemicals, coolants, acids and mineral oils.
Low sliding friction.
Temperature resistance of 100°C in continuous and momentary of 140°C or 200°C (viton)
Series: LB – LV – LD – LC – LS – LF-LN
Cylindrical way wipers
To prevent contamination of hydraulic fluid and to clean moisture, particles and dirt from piston rods in hydraulic and pneumatic applications.
The standard materials for these wipers are nitrile rubber (NBR) or viton (FPM), in black color.

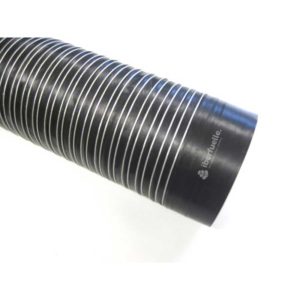

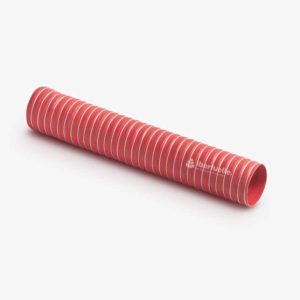

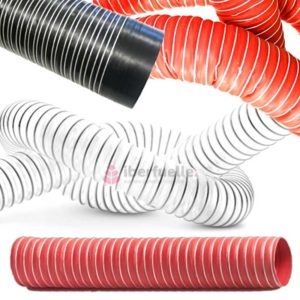

FLEXIBLE SUCTION PIPES
Flexible tubes for gas aspiration or conduction, made of various materials and adapted to your needs. They are intended for various sectors, such as industrial: naval, aeronautical, engines, aspiration.
Great resistance to abrasion and aging. It’s highly flexible making assembly easy.
In some versions, sleeves can be attached to the ends.
Flexible tubes for gas suction or conduction, made of different materials and adapted to your needs. They are intended for various sectors, such as the marine industry, aeronautics, engines, ccion.
High resistance to abrasion and aging. It is very flexible, facilitating assembly.
In some versions, we can put clamp sleeves on the ends.

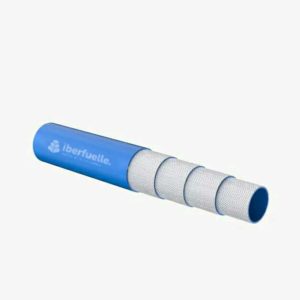

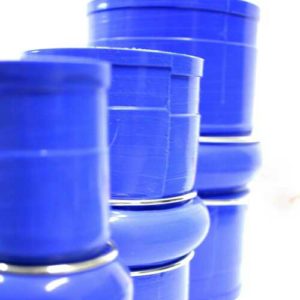

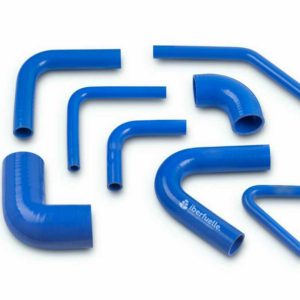

FLEXIBLE SILICONE PIPES
Flexible industrial silicone tubes, adapted to your needs. Recommended for conducting air or hot water, pressure and high temperature. Recommended for both vehicles and the industrial sector.
They present excellent flexibility, facilitating assembly. They have excellent resistance to aging and oxidizing agents, such as UV, ozone, etc. In addition, they are resistant to oils and hydrocarbons.
Anti-freezes and anticorrosives do not affect them.
For temperatures of -60oC to ‘180oC, although they can withstand peaks of 200oC.

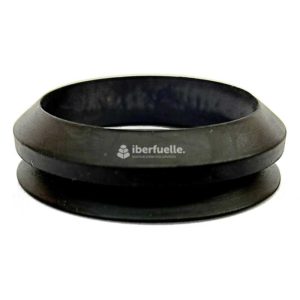

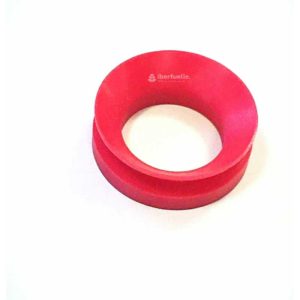

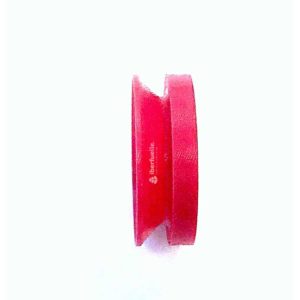

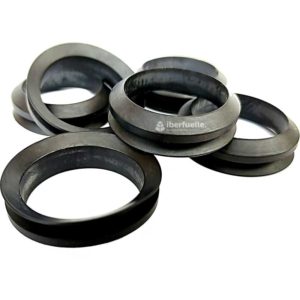

The V-shaped v-rings provide an optimal axial seal for any type of rotary shaft, made up of a body plus a lip that helps retain grease and prevent contamination. The most popular material is NBR, although we also have v-rings in CR and FPM.
Manufactured in 4 profiles: VA, VS, VL and VE and in a wide range of dimensions.
Vring or v-ring, is an elastero joint formed by body and lip, it is manufactured in 4 different profiles: VA, VS, VL and VE.
As it is an elastic material, it fits perfectly, keeping the joint together and rotating together with the shaft.
It is used to prevent the entry of both sealed and liquid particles: dust, liquid splashes, expelling them outside the closure area. It also prevents the release of the lubricant by acting as a seal.
For rotary sealing. We have a wide range of dimensions in stock.
- NBR or acrylonitrile butadiene rubber, the most common, suitable for fats, oils, hydrocarbons, lubricants, vegetable and animal oils … also with some acids and bases in solution. For temperature range from -20oC to ’90oC
- CR or chloroprene rubber, resistant to inclement weather outside, UV rays, alcohols, mild acids, ammonia, argon and other gases and for the same working conditions as NBR: greases, oils, … temperature of -20oC up to ’90oC
- FPM or fluorocarbon rubber, used for environments with highly concentrated chemical agents, or oils at higher temperatures, excellent resistance to oxidation, hydraulic fluids, .. temperature range from -20oC to 190oC </ li >

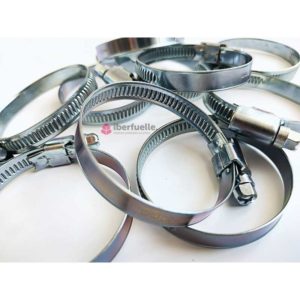

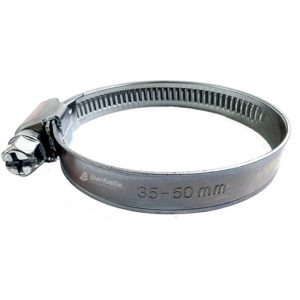

Zinc-plated steel or stainless steel endless clamps. Bellows clamping elements with sleeve type terminal (to the stem, spindle, chrome bar, …) and also clamps for connection of tubes, suction hoses, etc.
In various bandwidths and diameters.

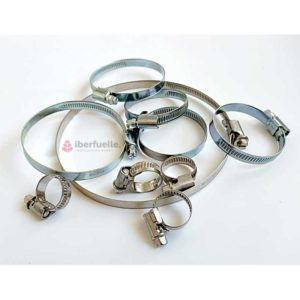

Zinc-plated steel or stainless steel endless clamps with rounded edges so that it is not sharp. High quality European manufacturing. Tighten with screw and endless thread.
In various diameters and band widths.
